ODM OEM Custom Metal Axial Fan Blade with Galvanized Sheet 34 Degree Angle and Customizable Diameter for Ventilation

Nombre De La Marca:	No brand
Número De Modelo:	TY-3
Cuota De Producción:	100 piezas
Precio:	$1
Detalles Del Embalaje:	caja de cartón
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram

Información detallada

Descripción del Producto

Información detallada

Lugar de origen:

Porcelana

Certificación:

Material:

chapa galvanizada

Nombre del producto:

Cuchilla de ventilador

Cantidad mínima de pedido:

100 piezas

Paquete:

paquete de cartón

Color:

Plata

Palabra clave:

Proyecto de ventilador

Disponible

Logo:

Aceptar logotipo personalizado

Utilizado para:

Ventilación/gas de escape de aire

Ángulo:

34 grados

Capacidad de la fuente:

100000 unidades por mes

Resaltar:

Galvanized Sheet Fan Blade

34 Degree Angle Metal Axial Fan

Customizable Diameter Air Cooler Fan

Descripción del Producto

Custom Metal Electric Motor Fan Blades

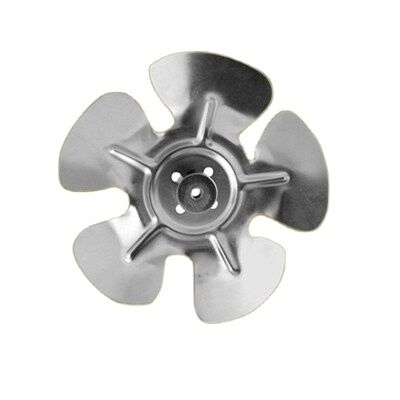

ODM/OEM custom metal electric motor fan blades available in 3-wing and 5-wing configurations for axial air cooler applications.

Product Overview

Our aluminum fan blades are manufactured from Aluminum 1060 or 3003 with customizable angles, thickness, and diameter specifications. The durable material provides excellent corrosion and rust resistance, ensuring easy installation while saving time and labor costs.

Technical Specifications

Product Name	Aluminum Fan Blade
Model	AFB
Material	Aluminum 1060 or 3003
Thickness	0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm
Angle	15-34 degree
Diameter	135, 140, 145, 150, 154, 172, 180, 200, 220, 230, 250, 254, 280, 300mm
Production Technology	Stamping
OEM/ODM Service	Available
Application	Draught Fan
Samples	Free
Function	Ventilation/Air Exhaust

Product Display

Key Features

Applications

Manufacturing Capabilities

Surface Treatment: Heat treatment, anodized, polishing, PVD/CVD coating, galvanized, electroplating, spraying, and painting
Materials: Carbon steel, stainless steel, aluminum, copper, and more
Processing Types: Broaching, drilling, etching/chemical machining, and more
Size Customization: According to customer drawings or samples
Primary Process: Stamping/Punching
Certification: ISO9001
Minimum Order Quantity: Low MOQ starting at 1 piece (no mold cost required)
Delivery Time: 1-25 days after order with prepayment

Company Profile

Established in 2009 and based in Beijing, China, Beijing Oriens Technology Co., Ltd specializes in precision metal stamping and casting. With comprehensive production lines, we serve diverse application areas through strict quality control, competitive pricing, fast delivery, and exceptional customer service.

Since 2009, our products have been exported globally to North America (45%), Western Europe (33%), Eastern Europe (5%), Southeast Asia (5%), Northern Europe (5%), Eastern Asia (3%), South America (2%), and Southern Europe (2%). Our team of 11-50 dedicated professionals ensures high-quality products and services for international clients.

Frequently Asked Questions

Q1: Can I get samples?

Yes, samples are available.

Q2: Can I use my own logo or design on the products?

Yes, we offer OEM/ODM services. Your logo and design can be customized on the products.

Q3: Do you have your own factory?

Yes, we have a factory located in Cangzhou (near Beijing). We welcome you to visit our company and factory. We are a professional manufacturer specializing in OEM/ODM services.

Q4: What is your factory's production capacity?

Our production capacity varies slightly depending on the product, ranging from 50,000 to 100,000 pieces per month.

Q5: When will the goods be shipped?

For custom products, sample confirmation typically takes around 15 days. After sample confirmation, mass production can be completed in approximately 30 days.

Q6: Do you have a minimum order quantity (MOQ)?

No, there is no MOQ limit. However, larger quantities may qualify for better pricing. We will provide the best price based on your order volume.

Q7: What products do you offer?

We specialize in Metal Stamping, Toggle Latches, Castings, Clamps, Crate Clips, Server Chassis, and more.
